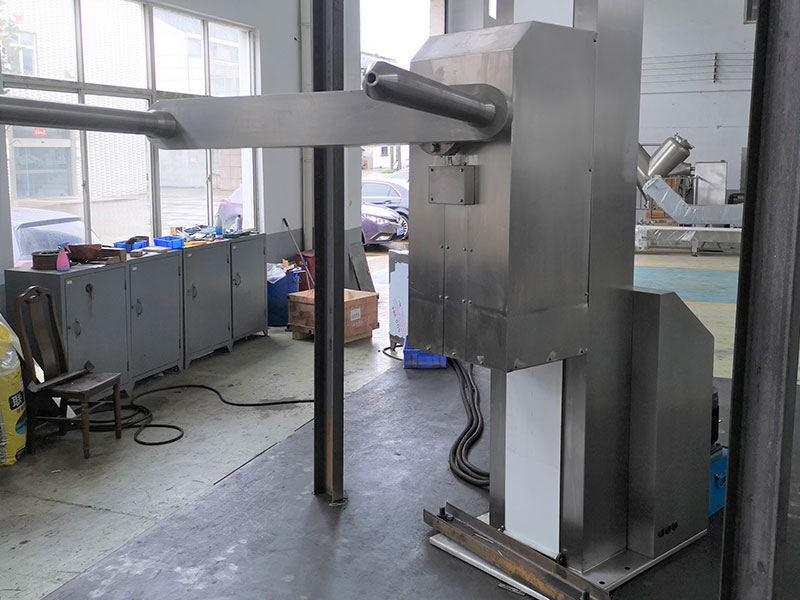

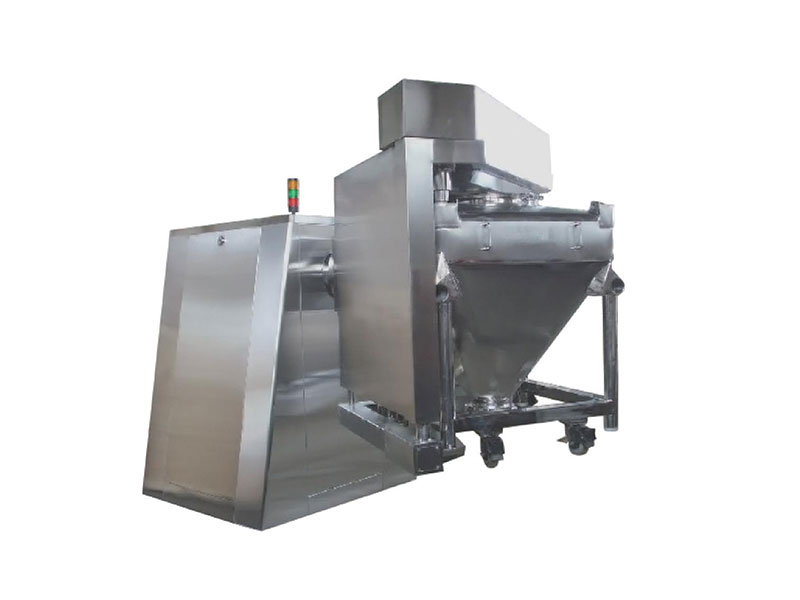

HDD Single arm automatic lift ing hopper mixer

This machine can automatically complete all actions such as lifting,clamping,mixing and descending. With a single-arm lifting hopper mixerand multiple mixing hoppers of different specifications,it can meet themixing requirements of large quantities and varieties, and is an idealequipment for total mixing in pharmaceutical factories.At the same time, it iswidely used in pharmaceutical, chemical and food industries.

Product Model：# HDD

Send Mail Consulting

Product Overview

Pilot Type Double Planetary Mixer consists of reducer, planetary frame, agitator, disperser, scraper, container, hydraulic lifting system and frame. The rotating planetary frame drives the mixing and dispersing shafts to revolve around the container axial direction and also to rotate at a high-speed at same time to put the materials under strong shearing and kneading force, so the materials are dispersed and mixed thoroughly. The scraper attached to the planetary frame rotates together with the planetary frame. It clings to the container wall and scrape the materials off the wall continuously. The container inner wall is precisely lathed and then mirror polished to ensure the scraper can scrape all materials sticking to the wall off without residue. The blades can also be equipped with scraper for scraping the materials at bottom to ensure without mixing dead corner and excellent mixing result. Finished products with stable quality is ensured.

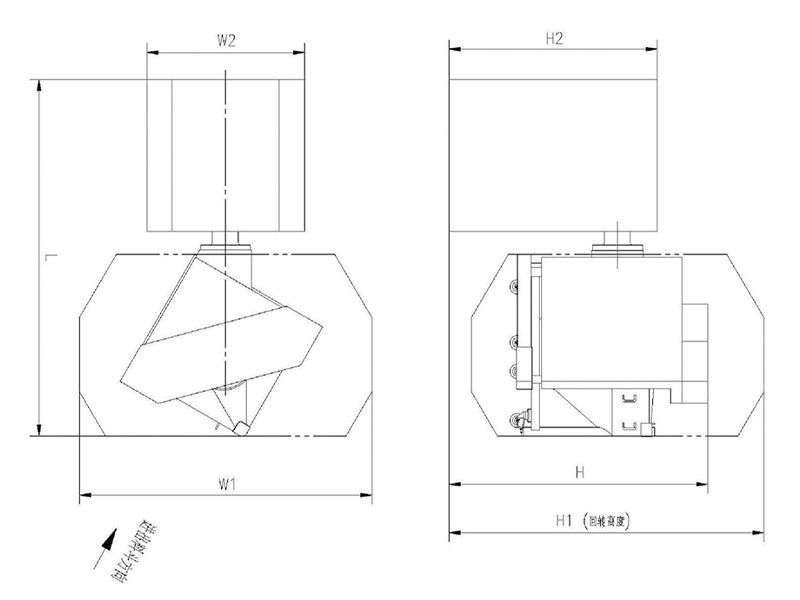

Technical Parameter

型号	混合转速	最大料斗容积	最大装料容积	最大装料重量	总功率	整机重量	外形尺寸
	rpm	L	L	kg	kw	kg	L	L1	W	W1	H	H1	H2	H3	H4	H5
HDD300	3-20	300	240	150	4.75	1600	2860	1300	2400	1200	3000	1620	1850	2360	2825	610
HDD300A											2800	1350	1580	2090	2555	340
HDD400	3-20	400	320	200	4.75	1600	2860	1300	2400	1200	3200	1605	1900	2429	2805	730
HDD400A											2800	1350	1600	2190	2550	430
HDD600	3-20	600	480	300	7	2000	3102	1304	2750	1200	3200	1700	1950	2562	3050	732
HDD600A											3000	1450	1700	2312	2800	482
HDD800	3-20	800	640	400	7	2400	3120	1340	2800	1400	3500	1850	2200	2750	3250	743
HDD800A											3100	1500	1800	2400	2900	393
HDD1000	3-15	1000	800	500	5.8	2700	3600	1500	3150	1400	3700	1900	1800	2825	3470	755
HDD1000A											3500	1700	1800	2625	3275	555
HDD1200	3-15	1200	960	600	8.5	2900	3600	1500	3200	1400	3800	1950	1800	2958	3550	723
HDD1200A											3500	1750	1800	2758	3350	523
