Blender series
Purpose:
Mainly used for mixing experiments between dried fractions, particles, or powders and particles of different components in the laboratory. It is an ideal model for exploring optimal process parameters for material mixing and an advanced experimental equipment for mechatronics integration.
Principle:

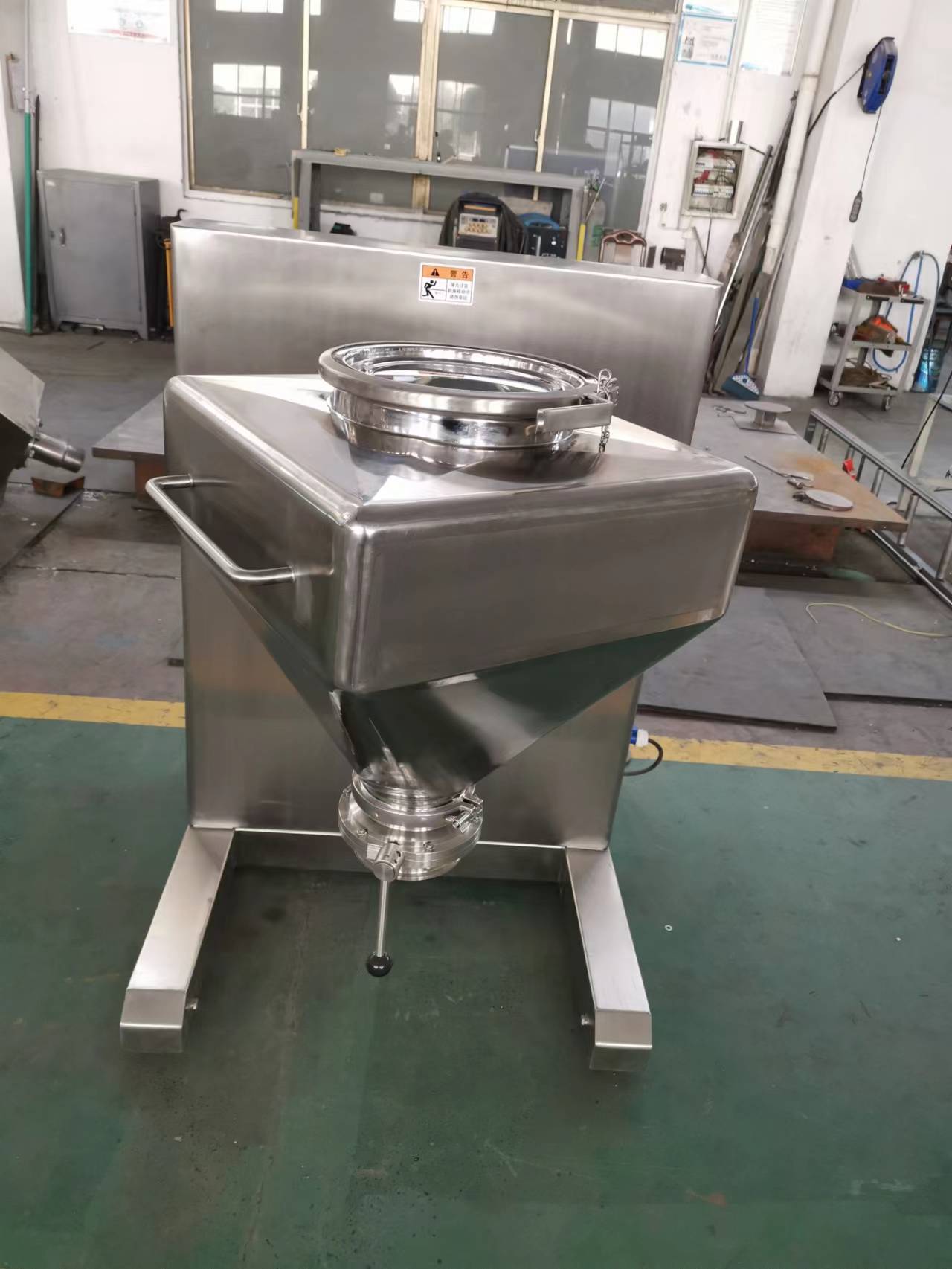

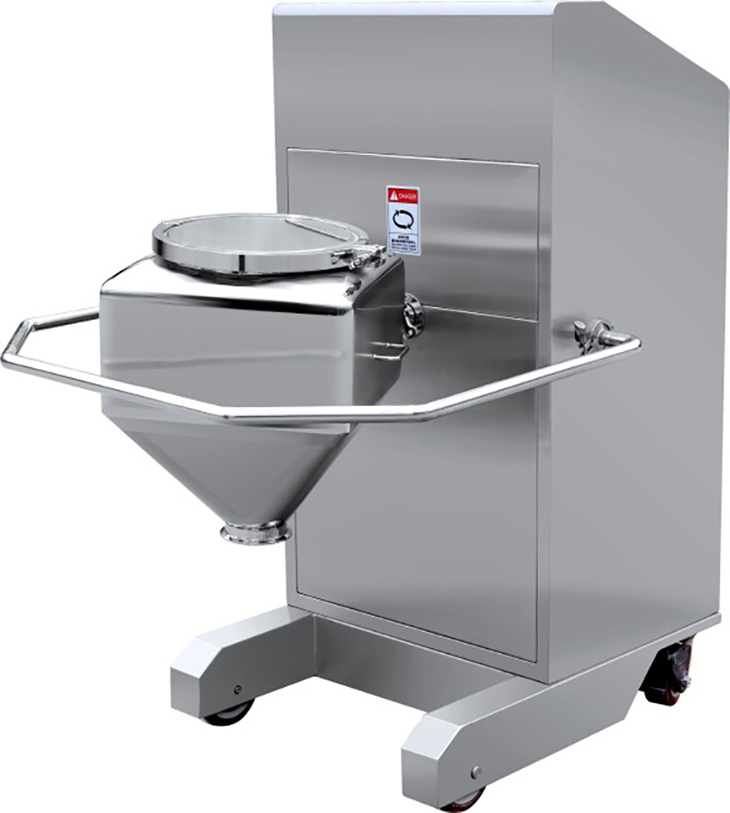

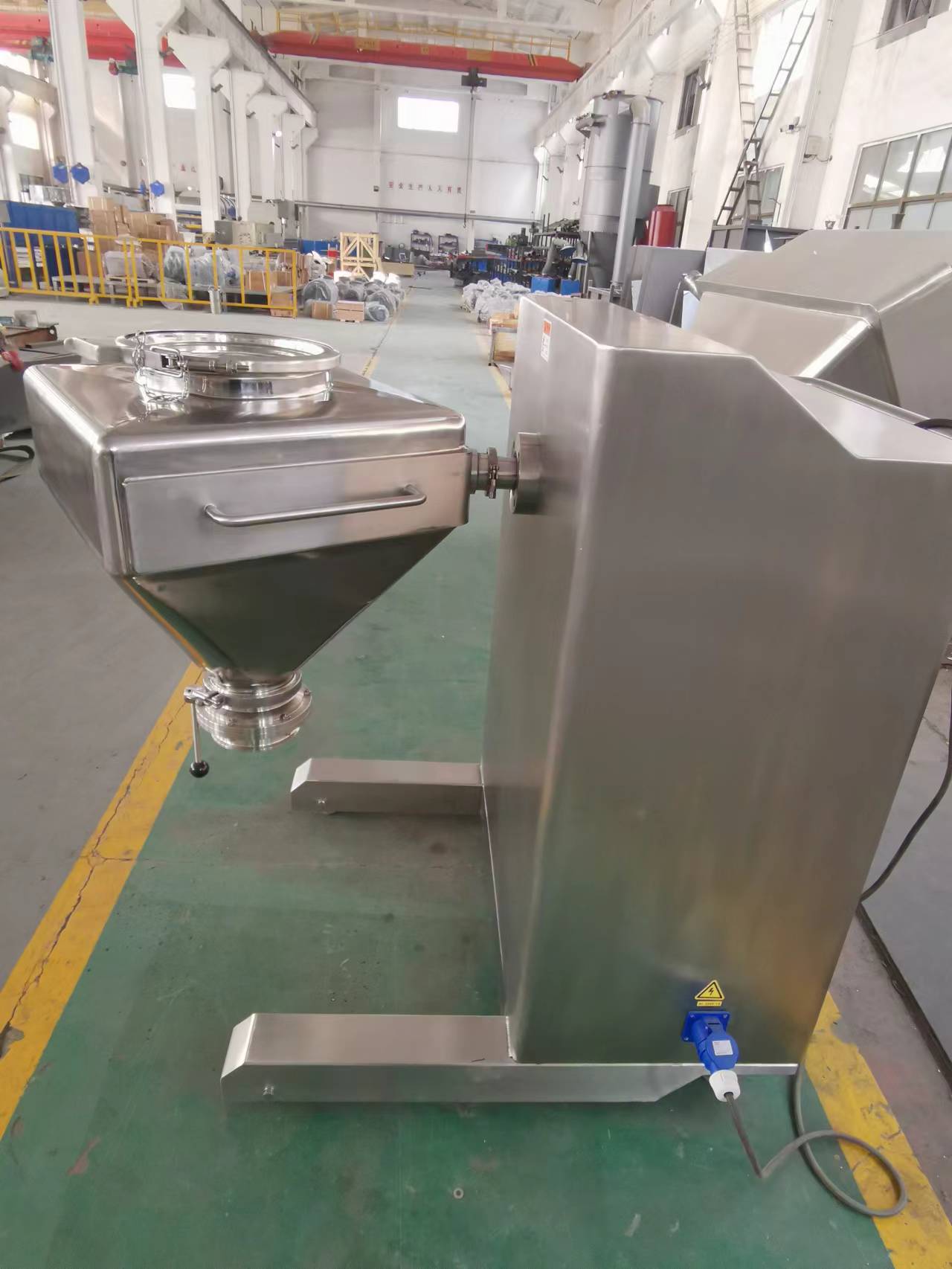

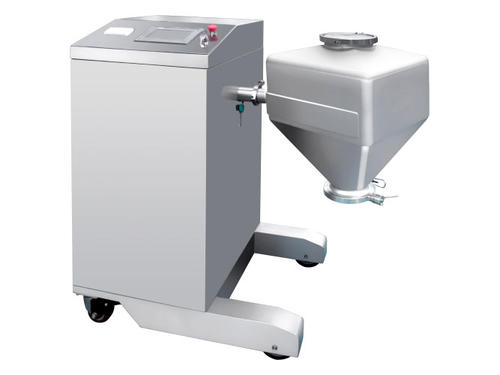

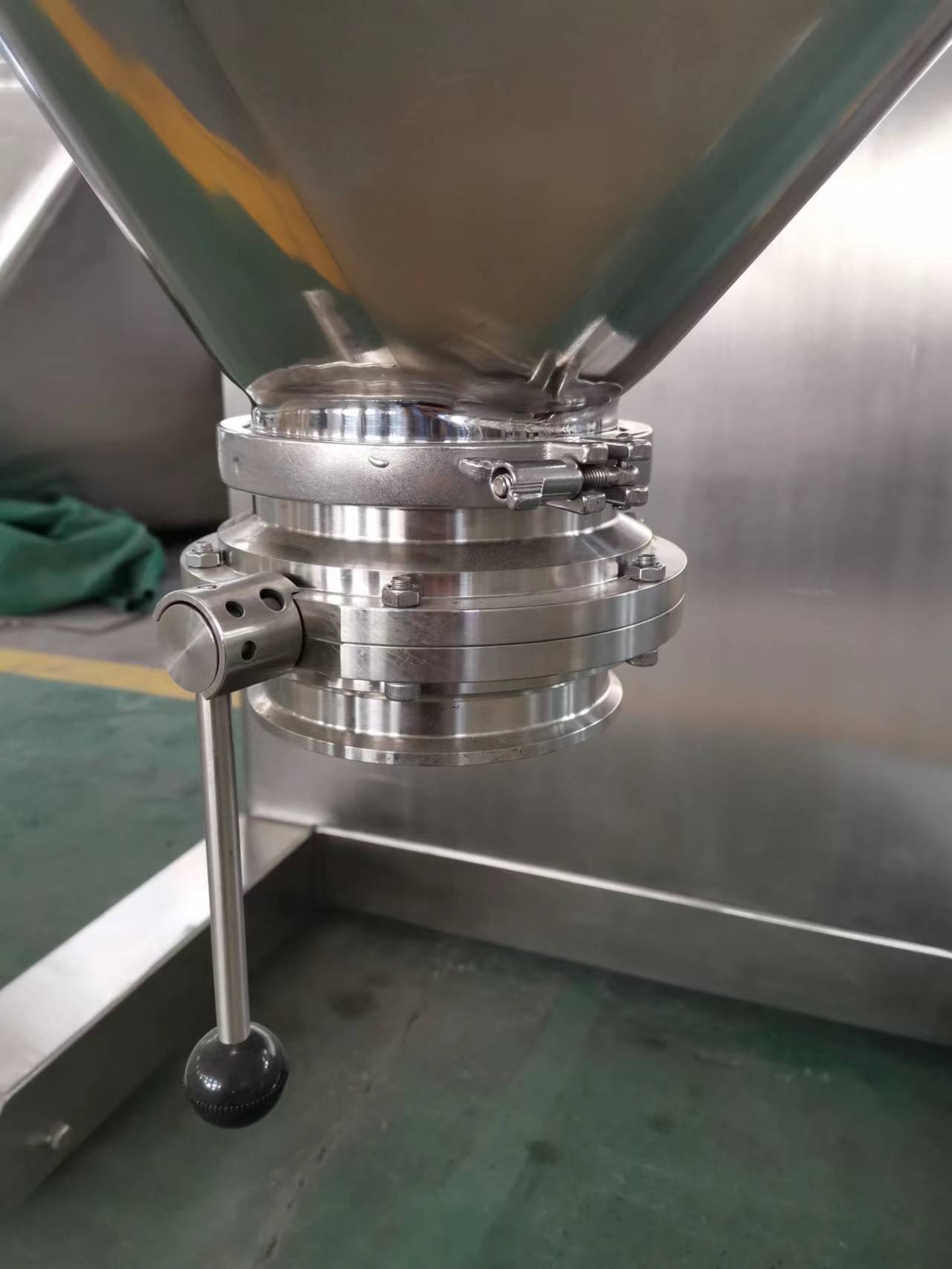

The HSD laboratory mixer is installed on a movable base. The main components include the frame, rotary system, electrical control system, hopper, etc. The conical mixing hopper is mainly composed of a hopper body, a hopper cover, clamps, butterfly valves, etc.
characteristic:
1. The mixing bucket and the main body adopt a quick release connection method, which is easy to install and disassemble.
2. Different mixing hoppers can be configured, eliminating the need for frequent material transfer, feeding, and other procedures to meet experimental testing needs.
3. PLC fully automatic control, automatic mixing, automatic positioning, and humanized control operation.
4. The whole machine has no hygiene blind spots, and the exposed material is made of high-quality austenitic stainless steel, which fully meets the GMP requirements for pharmaceutical production.
