Blender series
Purpose:
This machine is widely used for mixing powdered and granular materials in industries such as pharmaceuticals, chemicals, feed, metallurgy, etc.
characteristic:

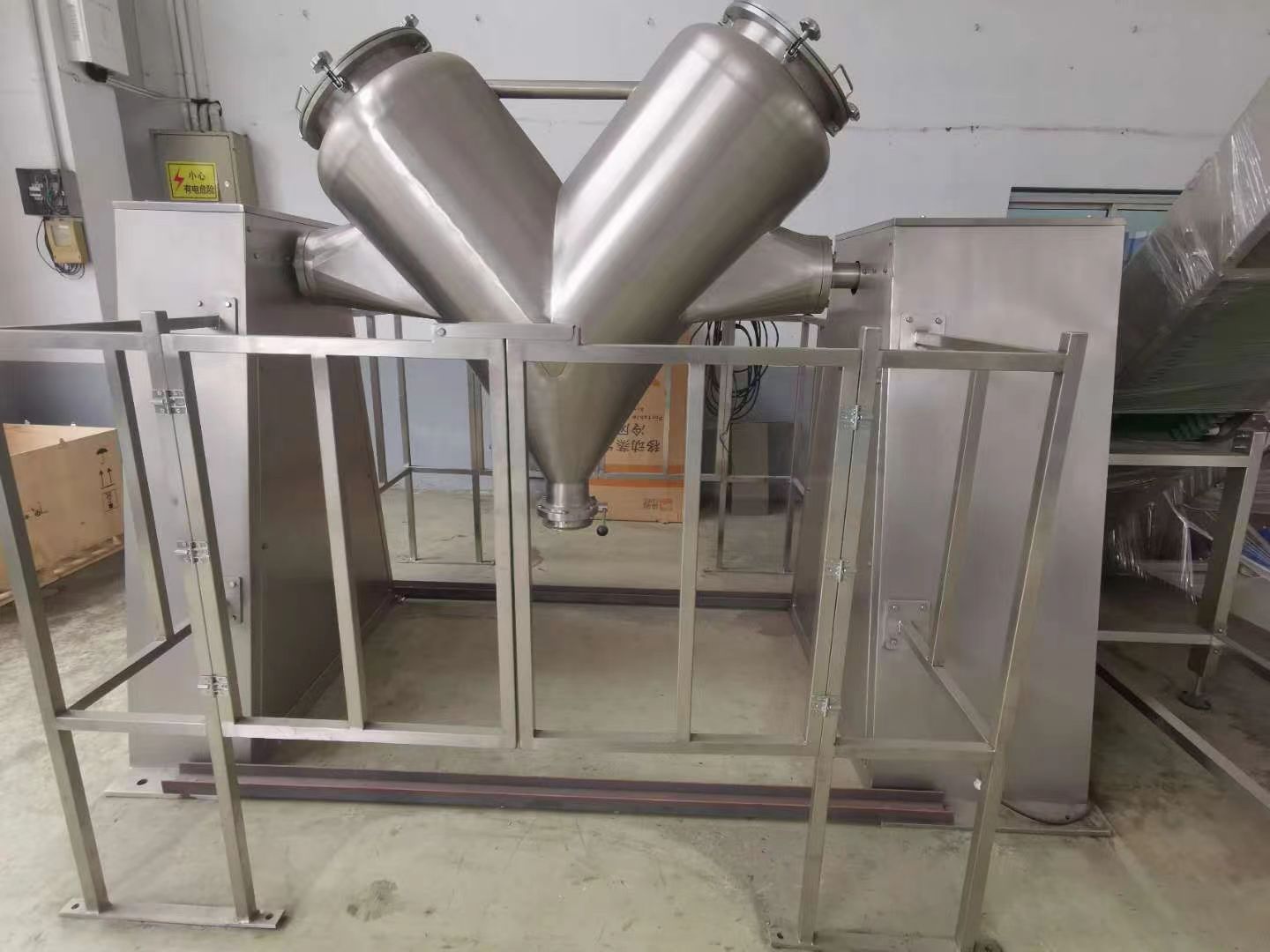

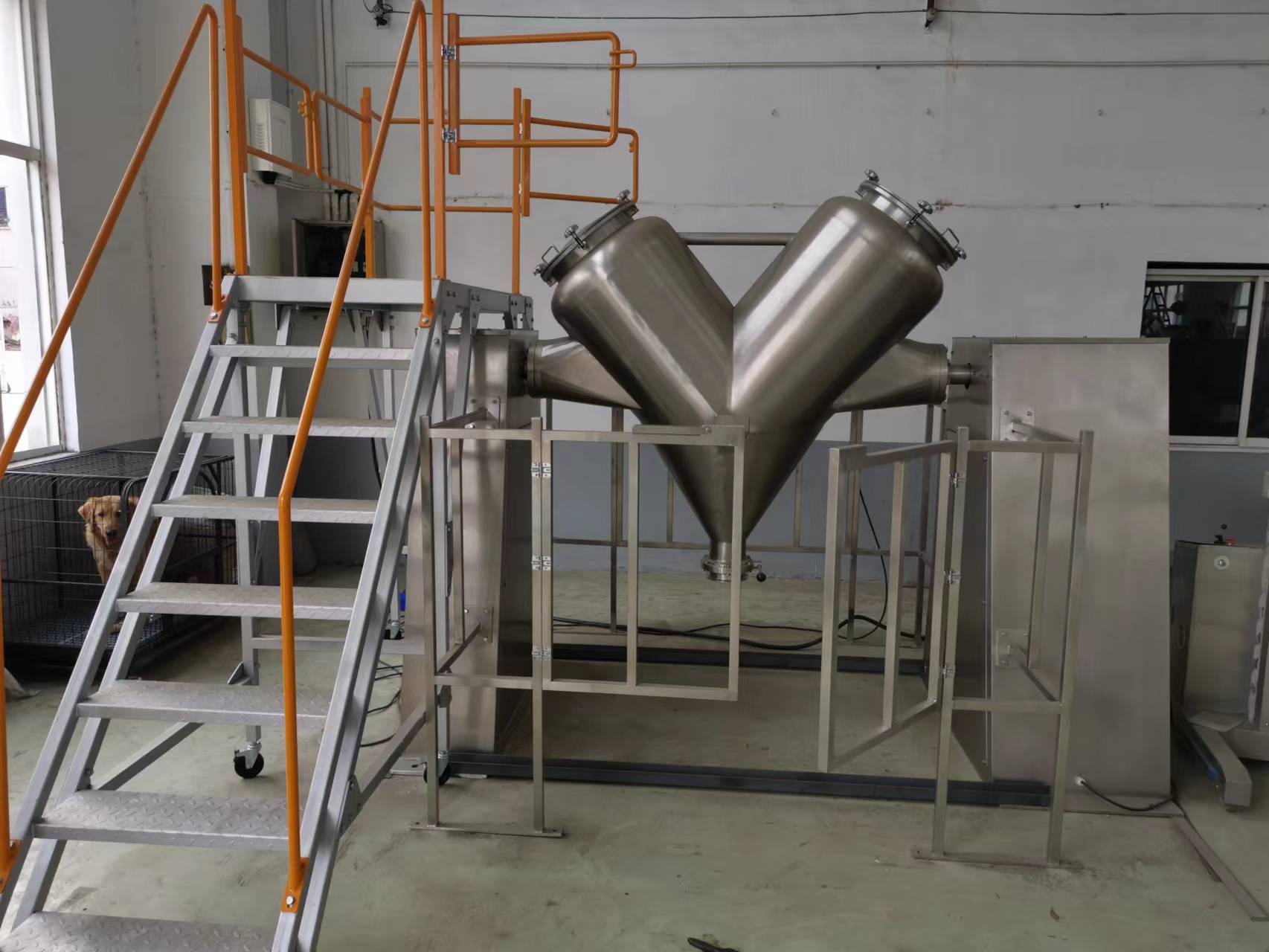

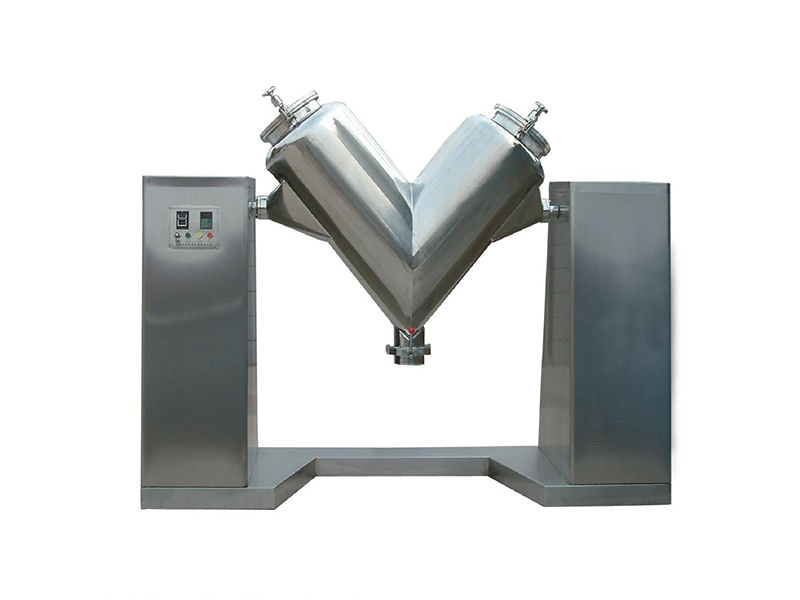

The HV V-type high-efficiency mixer is designed according to GMP standards, with a compact structure, easy operation, safety, and high efficiency. For special materials, vacuum feeding and sealed butterfly valve discharge can be used to achieve dust-free operation. There are two feeding methods: manual feeding and vacuum feeding, and the specific method is determined by the user. The inner wall of the mixer is smooth and has no dead corners. The material cylinder has a unique four-way mixing motion trajectory, with a mixing uniformity of 99%, high mixing accuracy, and fast speed, achieving the ideal mixing effect.
主要技术参数：

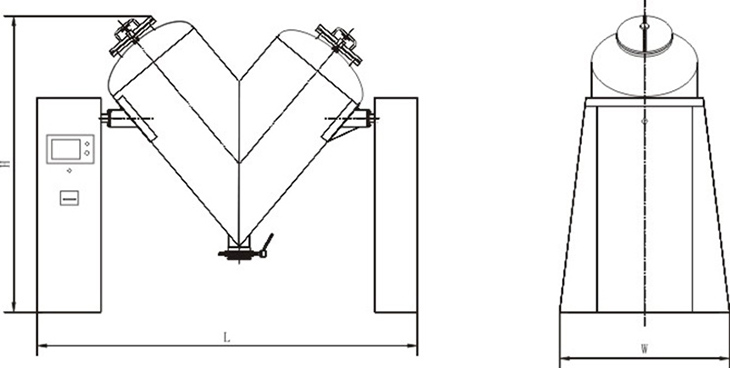

型号 | 全容积 | 有效容积 | 最大装料量 | 混合时间min | 混合转速rpm | 总功率KW | 外形尺寸（长*宽*高）mm | 最大回转高度mm | 机器重量kg | |
V-150 | 150 | 60 | 40 | 4-8 | 15 | 0.75 | 1900*860*1900 | 2040 | 320 | |
V-300 | 300 | 120 | 60 | 6-10 | 15 | 1.1 | 2250*800*2000 | 2060 | 350 | |
V-500 | 500 | 200 | 100 | 6-10 | 12 | 1.5 | 2500*1220*2720 | 2450 | 550 | |
V-1000 | 1000 | 400 | 200 | 6-10 | 12 | 3 | 2975*1600*3000 | 3000 | 950 | |
V-1500 | 1500 | 600 | 300 | 6-10 | 10 | 4 | 3190*1900*3100 | 3100 | 1020 | |
V-2000 | 2000 | 800 | 400 | 6-10 | 10 | 5.5 | 3800*1900*3310 | 3700 | 2000 | |
V-2500 | 2500 | 1000 | 500 | 6-10 | 10 | 7.5 | 3990*1990*3790 | 3790 | 2040 | |
V-4000 | 4000 | 1600 | 800 | 6-10 | 8 | 11 | 4945*2200*4230 | 4280 | 2800 |
