Purpose:

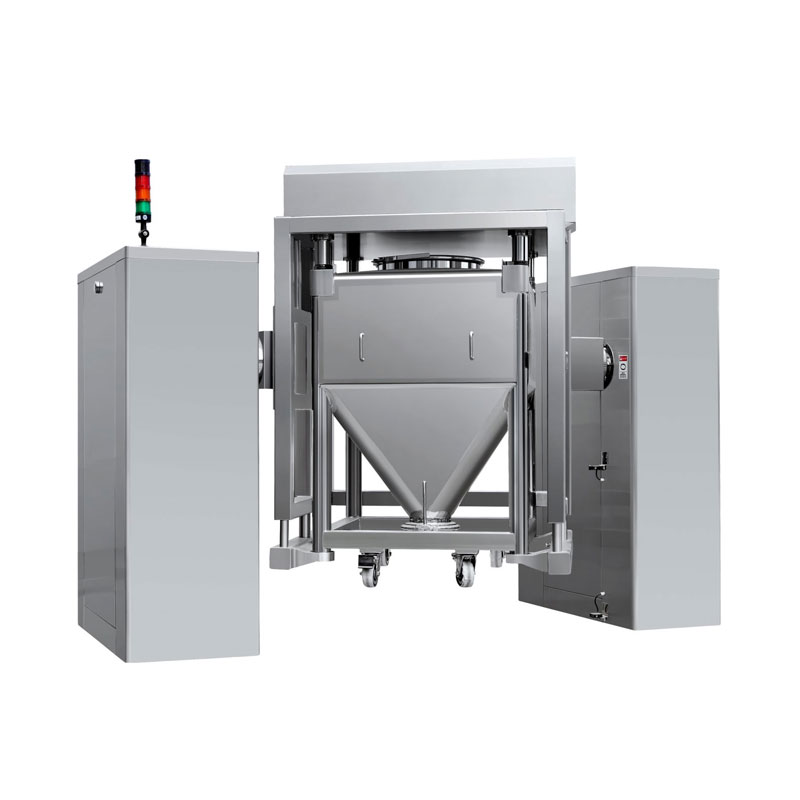

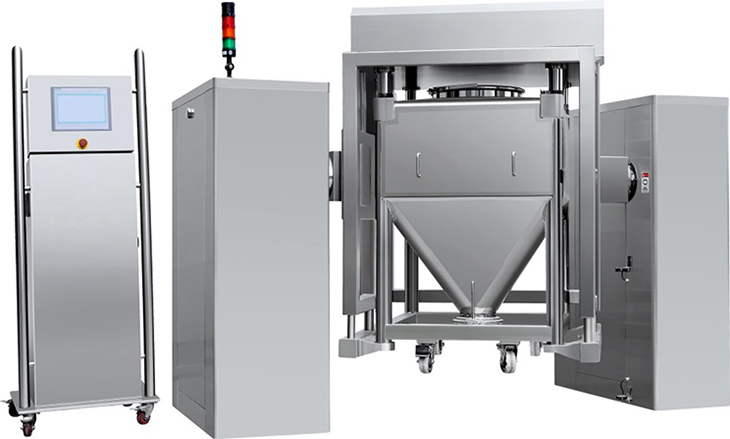

The HZD automatic lifting hopper mixer can automatically complete all actions such as lifting, clamping, mixing, and lowering. Equipped with an automatic lifting hopper mixer and multiple mixing hoppers of different specifications, it can meet the mixing requirements of large quantities and multiple varieties. It is an ideal equipment for general mixing in pharmaceutical factories and is widely used in industries such as pharmaceuticals, chemicals, and food.

Principle:

The machine consists of a base, a rotating body, a drive system, a braking system, and a control system. When working, push the mixing hopper into the rotating body and press the "confirm" button on the touch screen to automatically lift the mixing hopper into place and clamp it. After receiving the clamping signal, the pressure sensor drives the hybrid system to work. The mixing system mixes according to the set time and speed, and once the set parameters are reached, the rotating body can automatically stop vertically. At the same time, the mixed operation of the braking system is completed, and then the system operation is improved. The mixing hopper inside the rotating body descends into place, automatically stops and prints process data, and pushes out the mixing hopper to move on to the next process.

characteristic:

1. The machine has a reasonable structure, more stable and reliable performance, and easy maintenance.

2. The machine uses a program operating system, process parameter setting system, safety protection shutdown system, automatic precise positioning system, operation and automation record printing system that fully meet the process requirements of pharmaceutical factories, achieving fully automated production with very simple operation.

3. The original proportional position sensor ensures the safety and reliability of the equipment, preventing equipment accidents caused by misoperation.

4. The machine is equipped with exquisite hoppers that fully comply with GMP requirements, with no residue left during discharge and easy cleaning.
