The 3D mixer is used for powder and granular materials in pharmaceuticals, chemicals, food, light industry, electronics, machinery, mining and metallurgy, national defense industry, and scientific research institutions, especially suitable for high uniformity mixing of ultrafine powders.

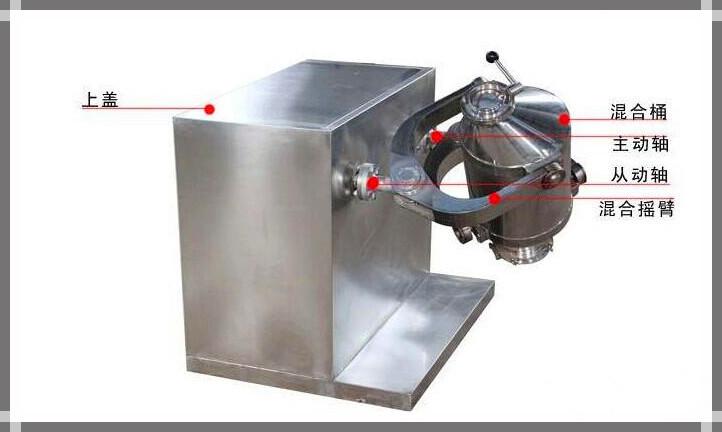

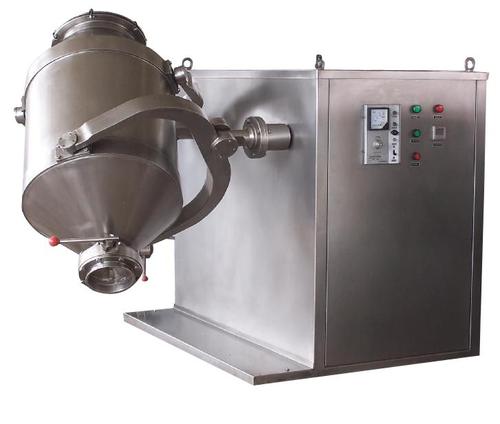

1、 Product Overview: The 3D mixer, commonly known as the "multi-directional motion mixer," is a novel material mixer widely used in industries such as pharmaceuticals, chemicals, food, light industry, and scientific research institutions. This function can mix powdered or granular materials with good fluidity very evenly. The mixing cylinder moves in multiple directions, with no centrifugal force on the material, no specific gravity segregation or layering, and no accumulation phenomenon. Each group can have significant weight ratios, and the mixing rate can reach over 99%. It is currently an ideal product among various mixers.

2、 Working principle

Under the driving force of the active shaft, the loaded cylinder undergoes a cyclic composite motion of translation, rotation, and rolling, which promotes the material to undergo a three-dimensional composite motion along the cylinder in the circumferential, radial, and axial directions, thereby achieving the mutual flow, diffusion, accumulation, and doping of various materials and achieving uniform mixing. When the machine is in operation, due to the multi-directional operation of the mixing bucket, various materials are accelerated in flow and diffusion during the mixing process, while avoiding the phenomenon of material density segregation and accumulation caused by centrifugal force in general mixing machines, thus achieving excellent mixing effect.

3、 Product Features

1. The various parts of the mixer cylinder are rounded transitions, which have undergone precision polishing treatment. The equipment does not require a foundation, making installation and maintenance convenient and having a long service life; 2. The 3D mixer has high efficiency, short mixing time, good mixing effect, and a mixing uniformity of 99.5%; 3. The loading rate of the cylinder is high, reaching 80-90% (only 40% for ordinary mixers), which is more than twice the loading coefficient of ordinary rotary mixers; 4. The height of the 3D mixer is low, the turning space is small, and the building generally does not require a jump floor; 5. The eccentric design of the discharge end cone of the mixing cylinder ensures that there are no dead corners, no residues, and easy cleaning during discharge, which meets GMP requirements; 6. The 3D mixer can start at low speed, operate smoothly at rated speed, and stop at a timed and reduced speed. The automatic shutdown position is the inlet and outlet position.
