Elevators and feeders

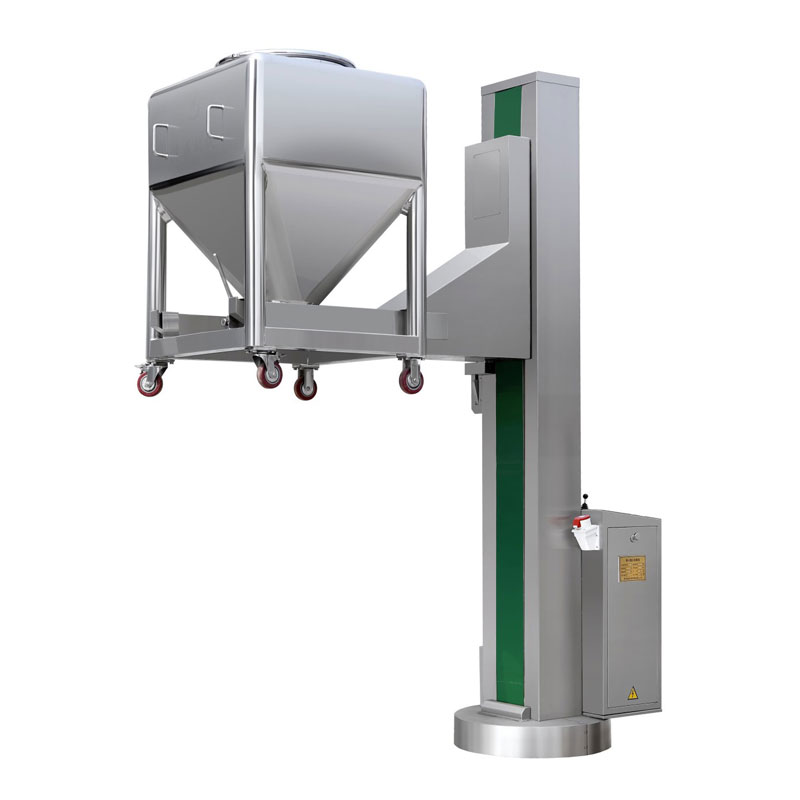

NTD hopper lifting feeder

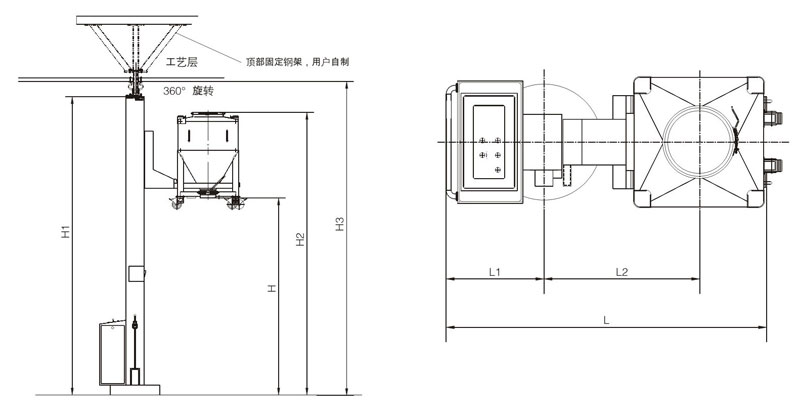

| 型号 | 主机尺寸 | 重量 | 净负荷 | 功率 |
| A | B | L | L1 | L2 | H | H1 | H2 | H3 | T | kg | kw |
| NTD-200 | 600 | 700 | 1900 | 600 | 850 | 2200 | 3020 | 3050 | 3200 | 0.5 | 200 | 1.5 |
| NTD-400 | 600 | 800 | 1950 | 600 | 950 | 2200 | 3400 | 3340 | 3600 | 0.6 | 400 | 2.75 |
| NTD-600 | 600 | 1000 | 2050 | 600 | 950 | 2200 | 3400 | 3370 | 3600 | 0.65 | 600 | 2.75 |
| NTD-800 | 600 | 1000 | 2200 | 600 | 1000 | 2200 | 3500 | 3570 | 3700 | 0.8 | 800 | 2.2 |
| NTD-1000 | 600 | 1100 | 2250 | 600 | 1100 | 2200 | 3500 | 3540 | 3700 | 0.9 | 1000 | 2.2 |
| NTD-1200 | 600 | 1200 | 2380 | 600 | 1200 | 2200 | 3500 | 3560 | 3700 | 1 | 1200 | 2.2 |
| NTD-1500 | 600 | 1200 | 2380 | 600 | 1200 | 2200 | 3800 | 3830 | 4000 | 1.2 | 1500 | 3 |
| NTD-1800 | 600 | 1200 | 2480 | 600 | 1200 | 2200 | 4000 | 4035 | 4200 | 1.4 | 1800 | 3 |
| NTD-2000 | 600 | 1200 | 2480 | 600 | 1200 | 2200 | 4200 | 4230 | 4400 | 1.5 | 2000 | 3 |
