Purpose:

This machine is mainly used for conveying and feeding solid materials in the pharmaceutical industry. Can be used in conjunction with boiling granulators, boiling dryers, and granulators. It is widely used in industries such as pharmaceuticals, chemicals, and food.

Principle:

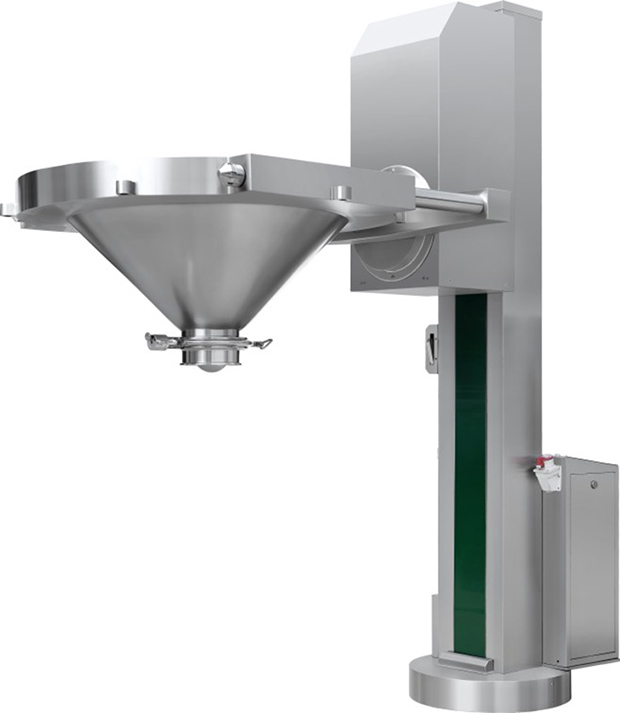

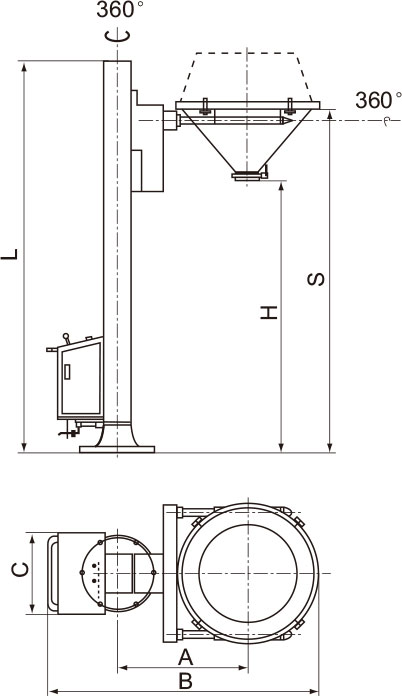

The machine is mainly composed of a chassis, pillars, lifting system, flipping system, etc. During operation, connect the conical hopper with the material bin of the boiling granulator or boiling dryer. Activate the lifting button to lift the silo; Activate the flip button to flip the silo 180 °. Release the brake, rotate the column horizontally to the required position, then lower the silo to the working height. Open the butterfly valve to transfer the material to the next process.

characteristic:

This machine is a new model developed by our company through extensive absorption and digestion of advanced foreign technology, combined with national conditions. Reasonable structure, stable performance, easy operation, no dead corners or exposed screws in the whole machine. The machine is equipped with a discharge butterfly valve with an anti misoperation device, which is easy to disassemble and clean, ensuring production safety. And it can effectively control dust and cross pollution, optimize production processes, and fully comply with GMP requirements for drug production.
