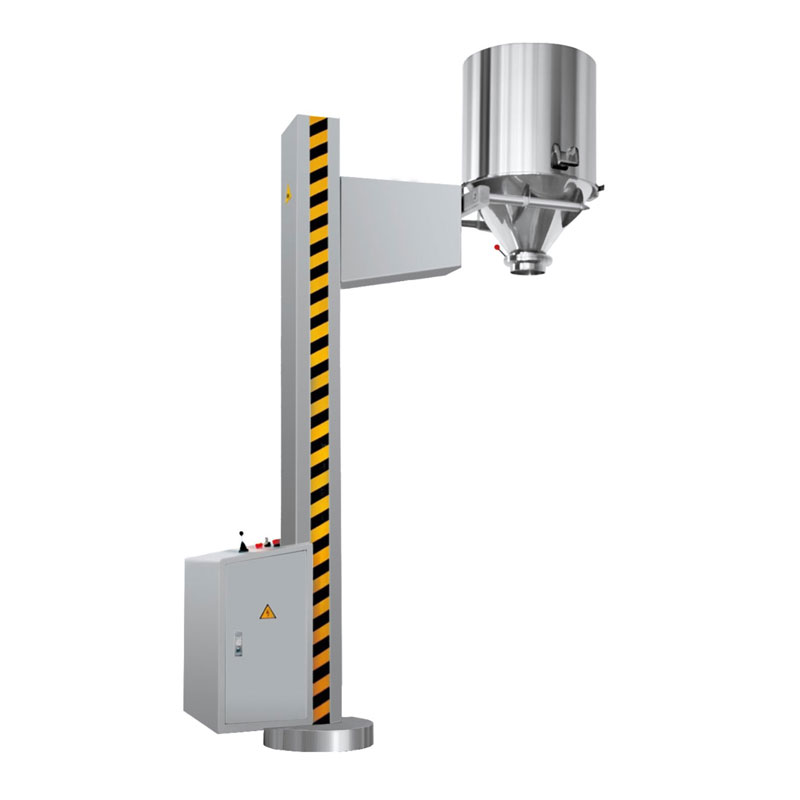

Elevators and feeders
Purpose:
This machine is mainly used for conveying and feeding solid materials in the pharmaceutical industry. Can be used in conjunction with equipment such as mixers, tablet presses, capsule filling machines, etc. It is widely used in industries such as pharmaceuticals, chemicals, and food.
Principle:
The machine is mainly composed of chassis, pillars, lifting system and other components. When working, first push the hopper containing materials into the fork of the hopper elevator, then activate the lifting button, and the hopper will perform lifting motion. After the hopper is in place, rotate the chassis to tightly connect with the feeding equipment, open the discharge butterfly valve, and transfer the materials to the next process in a closed manner.
characteristic:
This machine is a new model developed by our company through extensive absorption and digestion of advanced foreign technology, combined with national conditions. Reasonable structure, stable performance, easy operation, no dead corners or exposed screws in the whole machine. This machine is easy to clean, effectively controls dust and cross contamination, optimizes production processes, and fully complies with GMP requirements for pharmaceutical production.
主要技术参数：

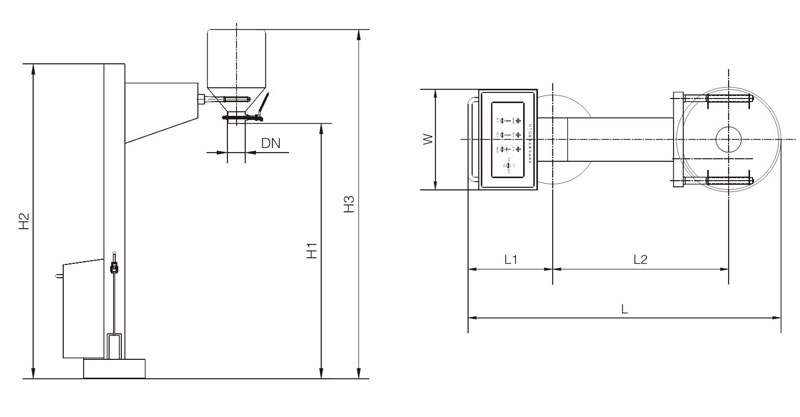

型号 | 主要尺寸结构 | 重量 | 净载货 | 总功率 | |||||||
L1 | L2 | W | H | H1 | H2 | H3 | DN | T | kg | kw | |
NTG-100 | 1860 | 500 | 1100 | 3200 | 2200 | 2700 | 3050 | 150 | 0.4 | 1.87 | 65 |
NTG-150 | 1920 | 500 | 1100 | 3400 | 2200 | 2700 | 3150 | 150 | 0.4 | 1.87 | 100 |
NTG-200 | 1920 | 500 | 1100 | 3500 | 2200 | 2700 | 3310 | 150 | 0.4 | 1.87 | 130 |
本公司可按用户特殊要求定制生产，如有变动恕不预先通知！
