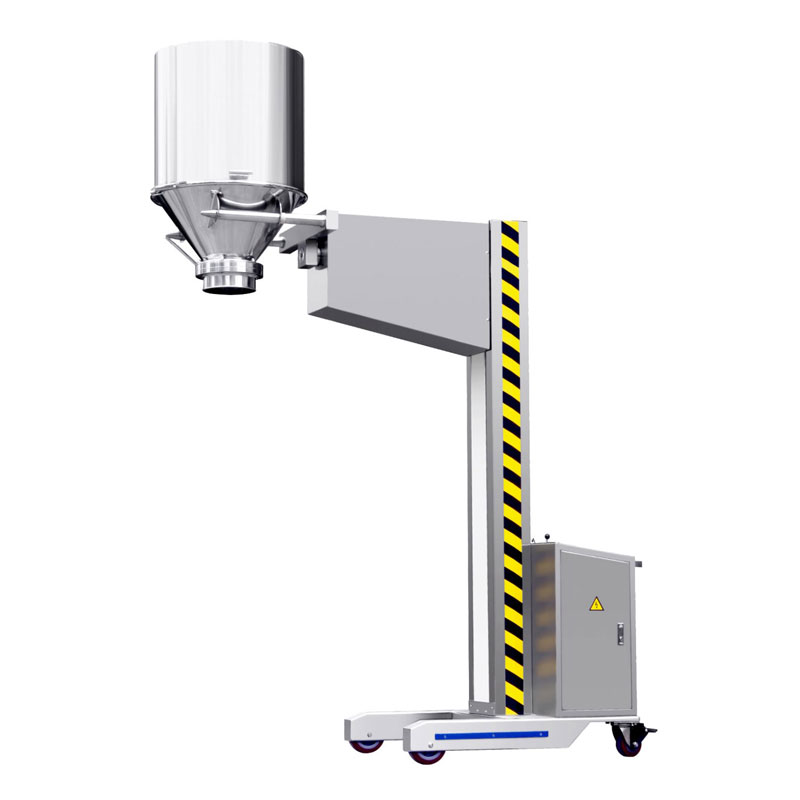

Elevators and feeders
Purpose:
This machine is mainly used for conveying and feeding fixed materials in the pharmaceutical industry. Can be used in conjunction with equipment such as mixers, granulators, tablet presses, coating machines, capsule filling machines, etc. It is widely used in industries such as pharmaceuticals, chemicals, and food.
Principle:

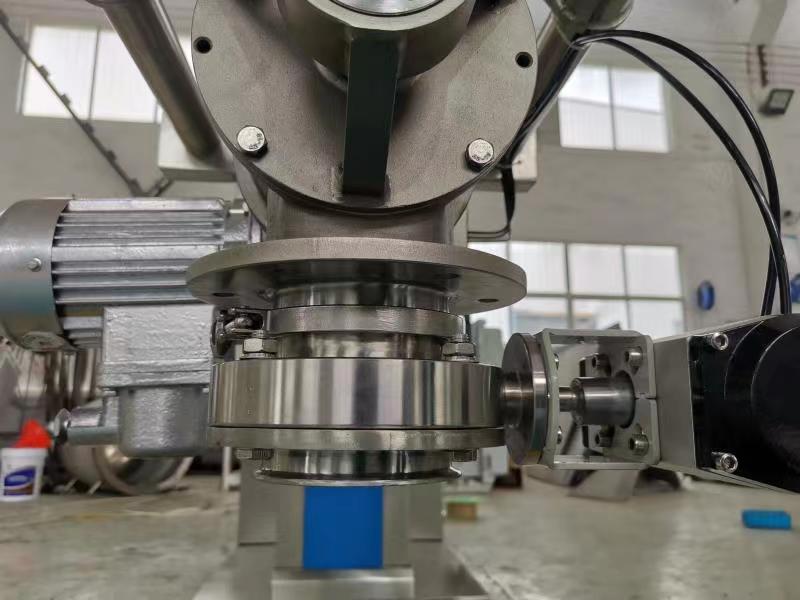

The machine is mainly composed of a chassis car, a telescopic system, a lifting system, a flipping system, etc. When working, first fasten the cone bucket to the material bucket, then activate the lifting button to lift the material bucket; Activate the flip button to flip the material bucket 180 degrees. The mobile chassis trolley is tightly connected to the feeding equipment, and the discharge butterfly valve is opened to transfer the material to the next process in a sealed manner.
characteristic:
1. The body shell is made of austenitic stainless steel, with no dead corners, no bumps, and is smooth and easy to clean;
2. Polyurethane casters, easy to push and do not operate on epoxy flooring, leaving no traces;
3. Discharge valve, detachable, easy to clean;
4. The material bucket is equipped with a sealing device, which is securely locked and does not cause dust or leakage during operation, effectively controlling dust and cross pollution.

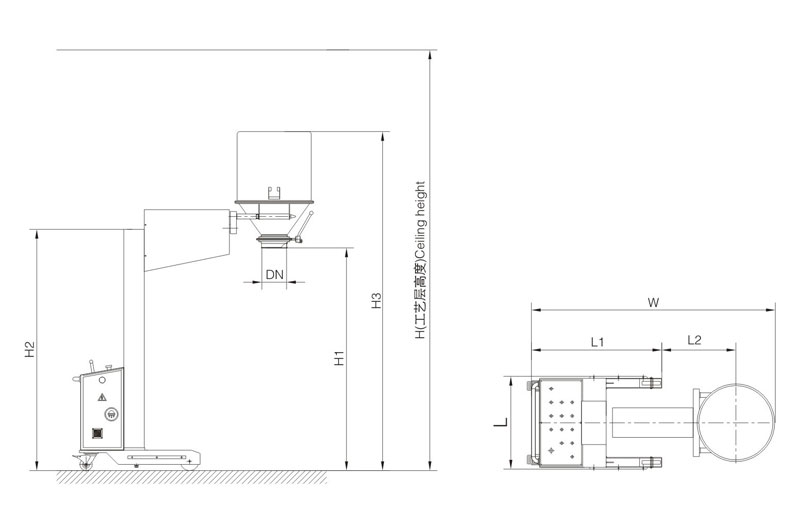

主要技术参数：
型号 | 主机结构尺寸 | 重量 | 净载货 | 总功率 | ||||||||
A | L | L1 | L2 | H1 | H2 | H3 | DN | Φ | T | kg | kw | |
NTY-50 | 600 | 1780 | 950 | 450 | 1800 | 1950 | 2650 | 150 | 500 | 0.3 | 50 | 1.47 |
NTY-100 | 600 | 1880 | 1050 | 550 | 1800 | 1950 | 3150 | 150 | 600 | 0.4 | 100 | 1.87 |
本公司可按用户特殊要求定制生产，如有变动恕不预先通知！
